Manufacture
and supply Precision Roller Chain and attachments to ISO standards
in both American ASA and British BS, over a pitch range of
1/4" to 3" in simplex and multi strand forms. These chains
can transmit from fractional powers to over 2500Kw, with chain
speeds up to 25m/s. Roller chain drives offer a number of
design advantages….
Other
Products in the Cross & Morse Range
Flexibility
of design
Maximum freedom on selection of shaft centre distances, fixed
or adjustable. Symmetrical design permits engagement with
sprocket from either side of the chain. Will drive several
shafts in either direction from a single shaft. Chains can
be modified to deal with any extreme conditions.
Durability
When the chain wraps around the sprocket, the load is distributed
over many pitches so pressures are comparatively low for the
power transmitted. The wearing parts are made of high grade,
hardened steel. Properly selected and installed precision
roller chain will withstand short overloads and shock loads,
giving long service life.
Convenience
Roller chain drive selection is simple and direct. Installation
including centre distance tolerances, does not require the
accuracy of power transmission media. Roller chains can be
easily connected and disconnected by standard connecting links;
there is no need to disturb sprockets, shafts or bearings
to replace a chain.
Availability
at Low Cost
A very large range of complete standard drives ensures early
delivery of drives to suit most installations. Standardisation
provides low cost, inter-changeability, and availability at
all times.

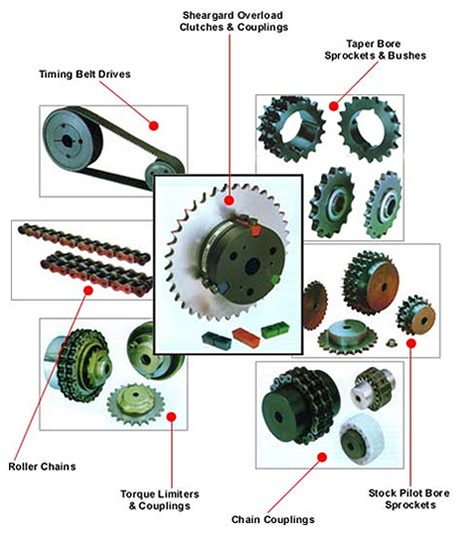

Other
items in the Cross & Morse range of Power Transmission Products
are also manufactured with the same precision and reliability,
to deal with customers particular requirements. These products
make the entire package from Cross & Morse a tidy and comprehensive
package to cover almost any application of Power Transmission.
